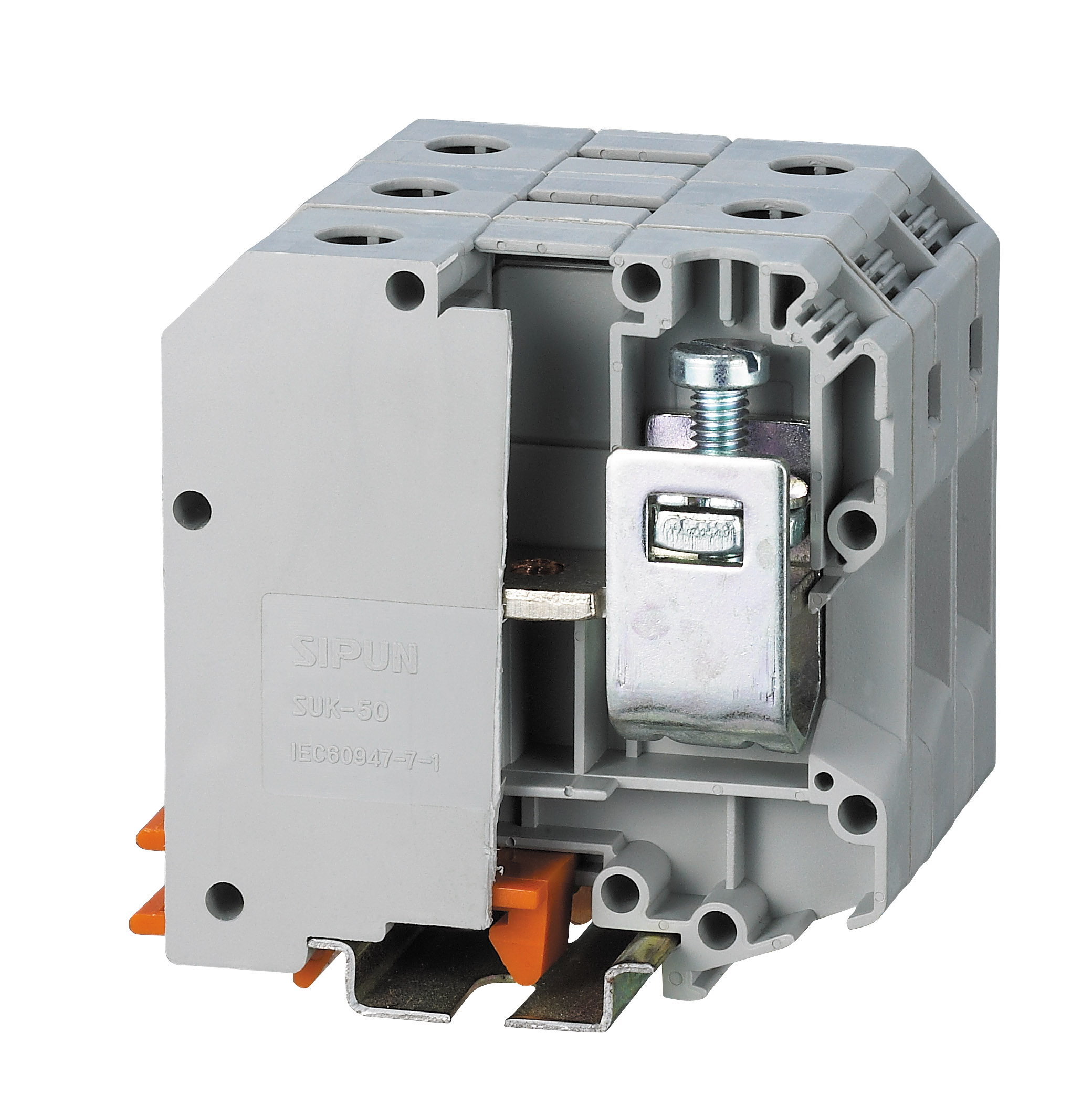

The SUK-50 high-current terminal block, engineered by ZHEJIANG SIPUN ELECTRIC LTD, delivers robust connectivity for industrial power distribution systems. Designed to handle conductors from 16 mm² to 50 mm², it supports high-voltage applications up to 1000V and continuous currents of 150A. Ideal for demanding environments, it ensures secure connections in energy management, machinery, and infrastructure projects.
Key Specifications
| Parameter | Value |
|---|---|
| Cross-section | 16–50 mm² |
| Rated Voltage | 1000V AC/DC |
| Rated Current | 150A |
| Operating Temp | -40°C to +120°C |
| Connection Type | Screw clamp (copper alloy) |
| Mounting | Compatible with TH35/G-type rails |
| Standards | IEC 60947, UL 1059 |
Core Features
- High-Capacity Design
- Optimized for 150A continuous load with low contact resistance (<0.5 mΩ), minimizing heat generation and energy loss.
- Electroplated tin-copper alloy clamps resist corrosion and maintain conductivity in humid/vibratory conditions.
- Flexible Bridging Solutions
- Central bridge slots enable horizontal busbar connections for parallel circuits without external jumpers 1.
- Supports tap-off connections for smaller cables (e.g., 16 mm²) alongside main conductors.
- Secure Installation
- Dual-purpose mounting: Snap-fit attachment to TH35 or G-type rails for tool-free assembly.
- Anti-slip cage clamp design prevents wire loosening under shock/vibration.
- Safety & Compliance
- 1000V reinforced isolation between poles reduces arc risk.
- Certified to IEC, and RoHS standards; flame-retardant housing (UL94 V-0).
- Traceability & Customization
- Laser-engravable marking strips (1–600 numbering) for circuit identification.
- Optional color-coded housings (gray/yellow/green) for phase differentiation.
Applications
- Power Distribution: Main switchgear, transformer links, and busbar extensions.
- Renewable Energy: Solar inverters, wind turbine controllers.
- Industrial Systems: Motor control centers (MCCs), heavy machinery, and rail traction systems.
- Infrastructure: Substations, airport/railway power grids, and data centers.
About ZHEJIANG SIPUN ELECTRIC LTD
As a national high-tech enterprise, SIPUN ELECTRIC specializes in industrial connectivity solutions. Our vertically integrated R&D and manufacturing facilities hold:
- ISO 9001/14001 certifications, CCC, CE approvals.
- 100+ technical patents and participation in 20+ industry standards.
- Global deployments in power grids, rail transit, and renewable energy projects.
✨ Engineered for resilience, the SUK-50 embodies SIPUN’s commitment to innovation—where safety meets scalability in high-power connectivity.
