DIN Rail Terminal Block Conductor Material Types

DIN rail terminal blocks are key components of electrical systems because they provide stable connections and help ensure that power is distributed efficiently. The conductor material is one of the most important components of a terminal block’s performance. We will look at different types of DIN rail terminal blocks in this article and focus on conductor materials such as copper and brass. You will walk away from this article with a solid understanding of which conductor material will work best for your specific application and why copper will generally be the better choice.

Common Conductors for DIN Rail Terminal Blocks

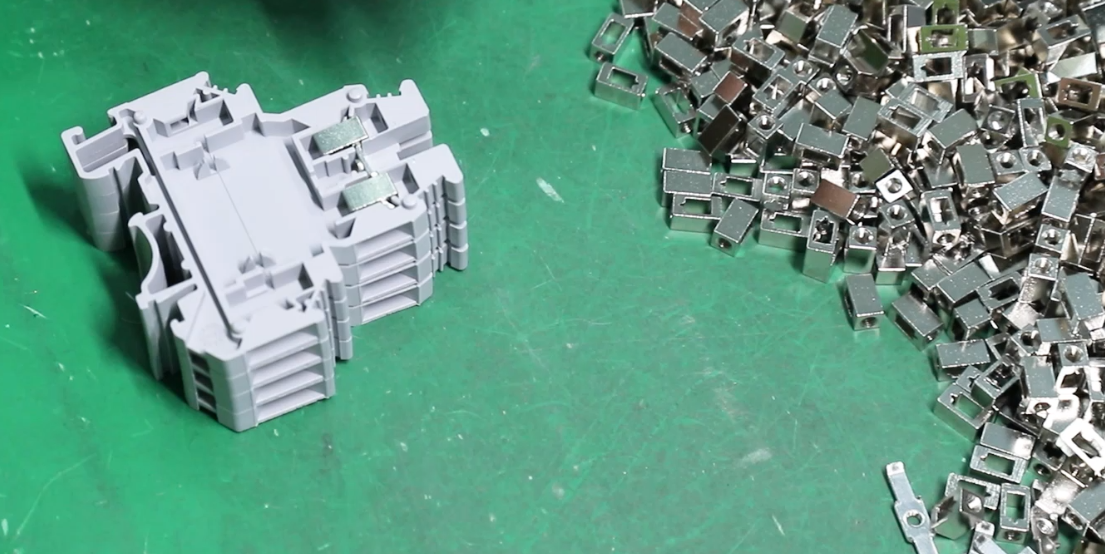

Copper Conductors

Copper is the industry-standard conductor material for terminal blocks because it has many exceptional properties. These include:

• Excellent Electrical Conductivity: Copper has one of the highest electrical conductivity ratings of all metals, so it minimizes energy losses, which allows it to conduct electricity more efficiently.
• Corrosion Resistance: Copper has excellent corrosion resistance, so it can last longer than other metals or alloys even in very aggressive environments.
• Strength and Durability: Copper conductors are very robust and will perform under a wide range of temperature and load conditions without degrading.

Copper is a reliable option for high-performance DIN rail terminal blocks, and there are numerous instances of copper conductors successfully carrying large amounts of electrical current with limited deterioration.

Brass Conductors

Brass is a durable alloy made from copper and zinc; therefore, it is often the best choice for applications where copper conductors cannot perform. Let’s look at the features of brass wire:

• Mechanical Strength: Brass has superior mechanical strength compared with copper, meaning it is more resistant to mechanical wear and deformation, especially for applications where there is constant engagement and disengagement.
• Corrosion Resistance: While brass does not possess as much resistance to corrosion as copper does (in extreme environments), it can still hold up in standard applications.
• Limited Conductivity: This property represents the main drawback of brass because it provides dramatically lower conductivity than copper, resulting in increased energy dissipation.

Overall, although brass has some advantages, specifically with respect to mechanical strength and its lower cost per unit, brass’s limited conductivity reduces its ability to be used effectively with heavier electrical loads.

Comparing Copper & Brass Conductors—Breaking It Down

When comparing copper and brass conductors, it is important to consider both materials’ relative strengths and weaknesses in various scenarios.

Most electrical systems consider copper to be the preferred conductor due to its superior conductivity and durability. Although brass provides a solution where mechanical strength is needed, in certain instances the energy losses associated with employing brass due to its lower conductivity outweigh the advantages of mechanical strength, particularly regarding high-performance systems.

Why Copper is a Superior Selection

When comparing copper versus brass, below are reasons as to why you should focus on copper:

1. Energy Savings: Due to copper’s superior conductivity, electrical systems operate using a minimum amount of energy; therefore, this is extremely important in commercial/industrial systems.
2. Length of Service: Copper does not corrode easily and will continue to provide reliable service for many years, even in extreme conditions.
3. Versatile Use: Copper has the ability to handle large electrical loads without overheating; thus, copper can be utilized in any application.

Brass may provide an initial low cost, but in terms of long-term value, the performance and reliability of copper will usually provide more value than the initial investment in brass.

Choosing the Appropriate DIN Rail Terminal Block

To ensure that you receive optimal performance from your DIN rail terminal block, consider the following:

• Electrical Load: Since copper has a much higher conductivity than brass, copper is a better selection for high current applications because it will experience less energy loss.
• Environment: For corrosive environments or moisture, copper is the better choice to be used in heavy-duty or outdoor applications.
• Durability: If you will be disconnecting and reconnecting frequently, consider the use of brass due to its superior mechanical strength; however, ensure you select a terminal block based on load specifications.
• Cost: Although copper is generally more expensive than brass, due to its superior performance and longevity, often the cost associated with copper conductors will be justified.

If your application requires high-performance characteristics regarding electrical efficiency and durability, copper is the optimal conductor type.

Frequently Asked Questions

What is a DIN Rail Terminal Block?

A DIN rail terminal block is modular connectors that provide a means of connecting wires together in electrical assemblies while being mounted to a standard DIN rail; therefore, this provides a neat, uniform, modular application for the management of complex electrical wiring systems for commercial and industrial applications.

Is Brass Terminal Blocks Superior?

Although brass terminal blocks have advantages (durability/cost), in comparison to copper, brass is not as conductive as copper, so in general, copper terminal blocks are preferred when energy savings and long-term performance are required.

Conclusion

In terms of DIN rail terminal block styles, choosing the correct conductor material is critical to the performance of the terminal block selected for use. Although brass terminal blocks provide low initial costs and high mechanical durability, copper terminal blocks provide superior electrical conductivity and durability and corrosion resistance. Copper terminal blocks are the optimum selection for DIN rail terminal blocks where efficiency, reliability, and performance is of the utmost importance. By selecting the correct terminal block using copper conductors, you are ensuring that you will have a reliable electrical connection that reduces the costs associated with energy losses and maintenance over the long term.
